EUR 422.50
2 units in stock
Expected delivery: 21 Jul - 25 Jul to your country (FR)
Incl. VAT, free shipping
Product # | 211839 |
Brand | LD-Systems |
Series | LD-Systems ICOA |
Category | 15" Active Loudspeaker |
Brand Category | LD-Systems - 15" Active Loudspeakers |
Recommended accessories
Variants

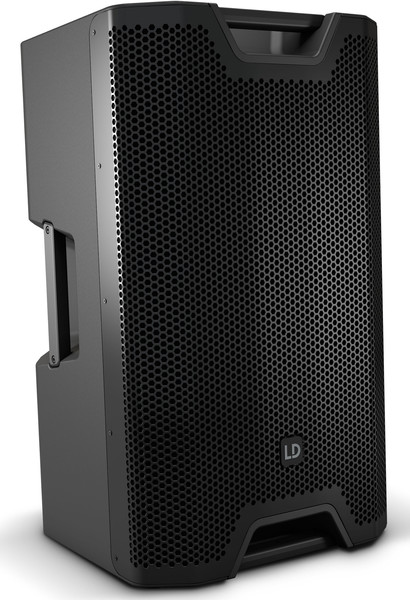

15“ Active Coaxial PA Speaker
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 15" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 300 W RMS performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.
Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

DUAL TILT FLANGE
36 mm dual tilt stand attachment with 0° and 5° tilt angle
Accessories (included): Power cord
- - A genuine all-rounder for full-range, satellite and monitor applications
- - 128 dB max. SPL and 1200 W peak power
- - Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent Pending)
- - Horn-loaded woofer
- - DynX DSP with 4 presets, 3-band EQ and delay function
- - 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- - 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- - Shock-resistant front grille for optimal protection of the speaker
- - 4 aluminium grips with ergonomic, rubber surface
- - Extensive, optionally available accessories for installation and transport
- Type: Actives
- Low/mid driver dimensions: 15 "
- Woofer size: 381 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1 "
- HF Driver Size: 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF Driver Voice Coil: 25.4 mm
- Amplifier: Class D
- Dispersion (H x V): 90 ° x 50 °
- RMS: 300 W
- Peak power: 1200 W
- Frequency response: 48 - 20000 Hz
- Crossover frequency kHz: 2 kHz
- Max. SPL (peak): 128 dB
- Protection circuits: Multiband limiter , over voltage , over-current , thermal overload
- Controls: 2 x gain , On / off switch , Rotary/push encoder
- Indicators: LC display
- Mic/ line inputs: 2
- Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
- Line inputs: 1
- Line input connectors: 3.5 mm TRS
- Line outputs: 1
- Line output connectors: XLR
-Operating voltage: SMPS
- Power consumption: 150 W
- Ambient temperature ( in operation ): 0 - 40 °C
- Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
- Relative Humidity: < 80 %, not condensing
- Fuse: T4AL 250 V
- Cabinet material: polypropylene
- Cabinet construction: Bass Reflex
- tripod flange: 32 °F , 36mm flange , 5°
- Monitor angle: 55 °
- Low/mid driver dimensions: 15 "
- Woofer size: 381 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Horn: BEM optimized CD Horn
- HF driver dimensions: 1 "
- HF Driver Size: 25.4 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- HF driver voice coil: 1 "
- HF Driver Voice Coil: 25.4 mm
- Amplifier: Class D
- Dispersion (H x V): 90 ° x 50 °
- RMS: 300 W
- Peak power: 1200 W
- Frequency response: 48 - 20000 Hz
- Crossover frequency kHz: 2 kHz
- Max. SPL (peak): 128 dB
- Protection circuits: Multiband limiter , over voltage , over-current , thermal overload
- Controls: 2 x gain , On / off switch , Rotary/push encoder
- Indicators: LC display
- Mic/ line inputs: 2
- Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
- Line inputs: 1
- Line input connectors: 3.5 mm TRS
- Line outputs: 1
- Line output connectors: XLR
-Operating voltage: SMPS
- Power consumption: 150 W
- Ambient temperature ( in operation ): 0 - 40 °C
- Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
- Relative Humidity: < 80 %, not condensing
- Fuse: T4AL 250 V
- Cabinet material: polypropylene
- Cabinet construction: Bass Reflex
- tripod flange: 32 °F , 36mm flange , 5°
- Monitor angle: 55 °
Product Dimensions | |
---|---|
Depth | 415mm |
Width | 416mm |
Height | 695mm |
General Information | |
---|---|
Manufacturer information | Adam Hall GmbH
Adam-Hall-Str. 1 61267 Neu-Anspach Germany |
15" Active Loudspeaker attributes | |
---|---|
Unit | 1 piece(s) |
Product Details | |
---|---|
Product Number | 211839 |
Brand | |
Series | |
Category | |
Brand Category | |
Relevancy rank in Category 15" Active Loudspeaker | |
Date | January 2020 |
Dimension | |
---|---|
Weight | 24.3kg |
Box Width | 416mm |
