Presonus StudioLive SE24
EUR 2991.55
new
EUR 3149.00
In stock
Expected delivery: 12 Sep - 18 Sep to your country (DE)
Incl. VAT, free shipping in Germany
| Product # | 253628 |
| Brand | Presonus |
| Series | Presonus StudioLive |
| SubSeries | Presonus StudioLive Series III S |
| Category | Digital Mixing Console |
| Brand Category | Presonus - Digital Mixers |
Variants
StudioLive® SE 24 is a small-format digital mixer in a well-equipped low profile featuring 32 digitally recallable XMAX preamps, extensive mixing capabilities, studio-grade audio quality, flexible bus configuration, and advanced integrated recording capabilities – plus a full suite of powerful software featuring Studio One Pro.
The StudioLive SE 24 is a 40-channel small-format digital mixer with a full complement of analog I/O packed into a 25-fader chassis. The split-fader workflow options let you manage your mix in two efficient fader layers while providing access to your mix outputs on eight additional faders. Equipped with 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 24 makes your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.
When you’re ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 24 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Studio One Pro. Each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever before.
More than a mixer, StudioLive SE 24 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.
Mix. Record. Stream. Control.

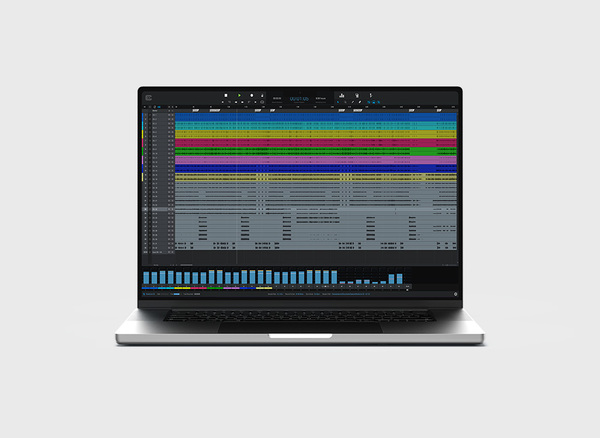

StudioLive SE lets you manage your entire workflow—live mixing, multitrack recording, playback, and even streaming—without leaving the console. Integrated Capture® software enables one-click Virtual Soundcheck, while the 64x64 USB interface and onboard SD multitrack recorder offer seamless capture options. And everything works right out of the box with Studio One® Pro DAW.
Remote Control from Anywhere
With Metro™, our most advanced remote access suite ever, you can control routing, levels, processing—even complete configuration—via the internet from anywhere in the world. Use Universal Control locally on any tablet or mobile device, and let performers manage their own monitor mixes using QMix®-UC.
Next-Level Audio Processing

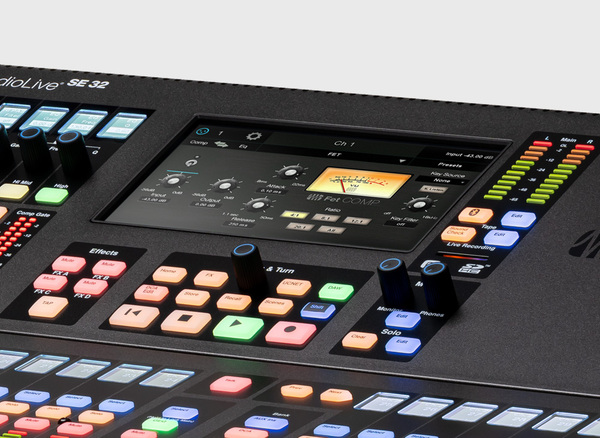

Powered by our dual-core FLEX DSP Engine, StudioLive SE includes studio-grade effects and signal processing—featuring all 8 Fat Channel compressor models and all 7 EQs from the Fat Channel Collection, now standard. Add expanded Digital Reverb XL presets, a variable limiter release, and intuitive FAT channel workflow—and you’ve got an analog-style experience with modern precision.
- - Integrated Multitrack Recording
- - Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
- - One-click Virtual Soundcheck with Capture
- - Seamless compatibility with Studio One Pro and leading DAWs
- - Pristine Studio Sound on Stage
- - 33 XMAX-Remote preamps for transparent analog tone and digital recall
- - 32-bit floating-point DSP processing
- - 115 dB A/D–D/A converters with ultra-low jitter clocking
- - Expanded Routing and I/O
- - 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
- - AVB networking with StudioLive Stage Boxes and Milan-compatible gear
- - Four dedicated effects buses, four subgroups, and 24 DCAs
- - Advanced Fat Channel Processing
- - Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
- - All 7 EQs and 8 Compressors from the Fat Channel Collection included
- - Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
- - Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
- - Metro™ Remote Access and Universal Control
- - Control every aspect of your mix remotely—from routing to effects
- - Provide technical support and reconfiguration remotely
- - Use QMix®-UC for personal monitor mixing from mobile devices
- - Mixing Comfort and Control
- - 25 touch-sensitive motorized faders deliver smooth automation and tactile mixing
- - Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
- Headphone Jack: 1/4" TRS Active Stereo
- Voltage: 230V EUR
- Power Consumption: 85W (Continuous)
- Phantom Power: +48 VDC (±2 VDC)
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Reference Level For Zero dBFS: +18 dBu
- Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
- Line Input Connection Type: 1/4" TRS Female, Balanced
- Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Line Inputs Impedance: 10 kΩ
- Line Inputs Maximum Level: =+18 dBu
- Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
- Microphone Input Connection Type: XLR Female, Balanced
- Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
- Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Microphone Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
- Microphone Preamp Input Impedance: 1 kΩ
- Microphone Preamp Maximum Input Level: =+12 dBu (Unity Gain)
- Microphone Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Microphone Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
- Tape Maximum Input Level: +12 dBu, ±0.5 dBu
- Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
- Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Line Outputs Connection Type: 1/4" TRS Female, Balanced
- Line Outputs Maximum Output Level: =+18 dBu, ±0.5 dBu
- Line Outputs Output Impedance: 100 Ohms
- Tape Maximum Output Level: +18 dBu, ±0.5 dBu
- Tape Output Impedance: 100 Ohms
- Voltage: 230V EUR
- Power Consumption: 85W (Continuous)
- Phantom Power: +48 VDC (±2 VDC)
- Digital Audio Bit Depth: 24
- Digital Audio Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
- Digital Audio Reference Level For Zero dBFS: +18 dBu
- Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
- Line Input Connection Type: 1/4" TRS Female, Balanced
- Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Line Inputs Impedance: 10 kΩ
- Line Inputs Maximum Level: =+18 dBu
- Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
- Microphone Input Connection Type: XLR Female, Balanced
- Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
- Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
- Microphone Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
- Microphone Preamp Input Impedance: 1 kΩ
- Microphone Preamp Maximum Input Level: =+12 dBu (Unity Gain)
- Microphone Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
- Microphone Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
- Tape Maximum Input Level: +12 dBu, ±0.5 dBu
- Headphone Outputs Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
- Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
- Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
- Line Outputs Connection Type: 1/4" TRS Female, Balanced
- Line Outputs Maximum Output Level: =+18 dBu, ±0.5 dBu
- Line Outputs Output Impedance: 100 Ohms
- Tape Maximum Output Level: +18 dBu, ±0.5 dBu
- Tape Output Impedance: 100 Ohms
| Product Dimensions | |
|---|---|
| Depth | 584mm |
| Width | 660mm |
| Height | 165mm |
| General Information | |
|---|---|
| Manufacturer information | Presonus Audio Electronics
18011 Grand Bay Court Baton Rouge 70809 Baton Rouge LA United States |
| Product Details | |
|---|---|
| Product Number | 253628 |
| Brand | |
| Series | |
| SubSeries | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Digital Mixing Console | |
| Date | August 2025 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Box Width | 660mm |
| Gross Weight | 13.6kg |
