Behringer UB-Xa D
| Product # | 249597 |
| Brand | Behringer |
| Category | Synthesizer Module |
| Brand Category | Behringer - Modules |

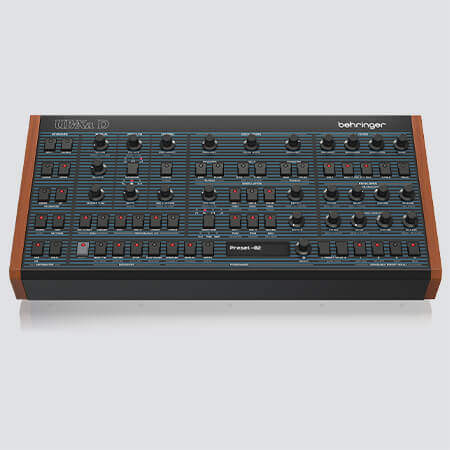

Faithful Recreation and More
To recreate its iconic growl and sizzle, we dove deep into the inner workings of the original OB-Xa and brought them into the 21st century including all its original factory patches that made the 80s roar. Thanks to its VCOs and VCFs heavily based on the original 3340 and 3320 chip designs, 16 voices and the ability to split its keyboard so you can layer 2 different sounds, the UB-Xa D is capable of conjuring up massive sounding riffs.
An Icon for the Icons
The UB-Xa D is a synth like no other that stands on the shoulders of giants! Its legacy is what gave birth to the 80s most iconic hits from the world’s most famous artists! From Rush’s Geddy Lee, the Police, Prince to Van Halen, and even the iconic Terminator theme composed by Brad Fiedel, the UB-Xa D’s lineage is filled only with the greats and now you can make your own mark on history as well.
Play Your Way
The UB-Xa D comes with an 8-channel modulation matrix that provides you with the extreme flexibility and expands what the UB-Xa D can do sonically. The 26 rotary controls plus a myriad of other functions give you direct control over the UB-Xa D’s VCOs, LFOs, ADSR generators and VCAs to sculpt your sound in a nigh-on unlimited number of ways. And because of the UB-Xa D’s MIDI implementation, you can pair your favorite controller and expand your UB-Xa D’s functionality any way you want!
Total Recall
Finding that tone you’ve been looking for after an amazing hour (or four) of tweaking and noodling is one of the most rewarding things when playing a synth. Which is why we’ve included up to 512 user program memories that allow you to save any setting you can come up with. You can even assign them to any of the preset recall switches so you can change presets on the fly, in the middle of a jam.
- - Analog polyphonic synthesizer and authentic reproduction of classic OB-Xa including original factory patches
- - Vintage mode allows selection of 8 synthesizer signatures including OB-Xa, OB-8 and more
- - 16 voices with 2 VCOs per voice and oscillator sync mode
- - Multi-timbral capability allows splitting or layering 2 different sounds
- - VCOs and VCFs based on reproductions of original 3340 and 3320 semiconductor designs
- - Both VCOs generate sawtooth, triangle or square waveforms with variable pulse width
- - Selectable dual-slope 12/24 dB analog low-pass filter per voice with adjustable resonance
- - Desktop version for stage performance or rack mount operation with rack mount brackets included
- - Flexible 8-channel modulation matrix for dramatic expansion of sonic possibilities
- - Dual-layer arpeggiator and sequencer with real-time sequence transpose
- - Velocity and after-touch can be optionally used for more expressive performance
- - 2 dedicated LFOs with 7 waveform shapes for modulation of pulse width, oscillator pitch and filter cutoff frequency
- - 2 ADSR generators per voice for control of VCF and VCA
- - Stereo VCA per voice to allow control over voice/layer panning
- - 26 rotary controls give direct and real-time access to all important parameters
- - High-quality LCD Display with encoder for rapid parameter editing
- - Assignable preset recall switches for immediate program selection
- - 512 user program memories with “compare and match” feature to quickly match all analog controls to stored program values
- - Fully servo-balanced outputs for highest signal integrity
- - CV/pedal inputs for connection to expression pedals and footswitches
- - MIDI Polyphonic Expression (MPE) to enable multidimensional controllers and multiple parameters per note
- - Comprehensive MIDI implementation (including NRPN/ CC control of all parameters and bulk load/save
- Number of voices
16-voice bi-timbral
- Type
Analog
- Oscillators
32
- LFO
2
- VCF
- 1 low pass, 2-pole or 4-pole,
(12dB or 24dB/ oct slope), switchable
- Envelopes
VCA, VCF
- Connectivity
- MIDI In/out/thru
5-pin DIN / 16 channels
- USB (MIDI)
USB 2.0, type B
- Main output
- 2 x 1/4" TRS, balanced, max. 22 dBu
Impedance: 50 Ω
- Headphones
- 1/4" TRS, stereo, max 25mW dBu
Impedance: 25 Ω
- Foot pedals
- Vibrato: 1/4" TRS, balanced
Filter: 1/4" TRS, balanced
- Foor switches
- Sustain: 1/4" Mono
- Program advance: 1/4" Mono
Hold: 1/4" Mono
- USB
- Type
Class-compliant USB 2.0, type B
- Supported operating systems
- Windows 7 or higher
Mac OS X 10.10 or higher
- Manual Section
- Controls
- Volume: 0 to 10
- Balance
Master tune
- Control Section
- Controls
- Portamento
OSC 2 Detune
- Switches
Unison
- Arpeggiator Section
- Switches
- Settings
- Hold
On
- LFO Section
- Controls
LFO Rate
- Switches
Waveform
- LED
- Sine
- Sawtooth
- Square
- Ramp up
- Sample & hold
- Trig
SMP
- Modulation Section
- Controls
- OSC 1 depth
OSC 2 depth
- Switches
- OSC 1 freq
- OSC 2 freq
- Filter freq
- OSC 1 PWM
- OSC 2 PWM
Volume mod
- Oscillator Section
- Controls
- Frequency 1
- Pulse width
Frequency 2
- Switches
- Saw waveform 1
- Pulse waveform 1
- Sync OSC 2
- F-ENV (envelope follow)
- OSC 2 Saw waveform 2
- Pulse waveform 2
Shift
- Keyboard Section
- Switches
- Split (keyboard)
- Double (keyboard)
- Lower (keyboard)
- Upper (keyboard)
- Chord
- Transpose down
Transpose up
- Sequencer Section
- Switches
- Rest / tie
- Record
- Stop
Play / pause
- Filter Section
- Controls
- Frequency
- Resonance
- Modulation
Noise
- Switches
- OSC 1
- Half OSC 2
- Full OSC 2
- 4 Pole
Track
- Envelope Section
- Controls
- Attack (envelope)
- Decay (envelope)
- Sustain (envelope)
- Release (envelope)
- Attack (filter)
- Decay (filter)
- Sustain (filter)
Release (filter)
- Programmer Section
- Controls
Select encoder
- Switches
- Compare
- Manual
- Write
- Preset / value -
Preset / value +
- LED
2 x line, 16-digit LCD display

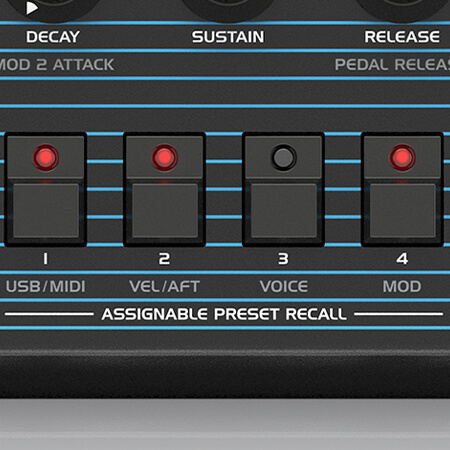

- Assignable Preset Recall Section
- Switches
- 1 / USB / MIDI
- 2 / vel / aft
- 3 / voice
4 / mod
- Performance LFO
- Controls
- Rate
Depth
- Switches
- Waveform
- OSC 1 mod
- OSC 2 mod
- OSC 2 only (bend)
Amount (bend)
- LED
- Triangle
- Square
- Ramp up
- Sawtooth
- Random
- Sample & hold
| Product Dimensions | |
|---|---|
| Depth | 461mm |
| Width | 224mm |
| Height | 119mm |
| Synthesizer Module attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 249597 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Synthesizer Module | |
| Date | June 2025 |
| Dimension | |
|---|---|
| Weight | 4.84kg |
| Box Depth | 566mm |
| Box Width | 224mm |
| Box Height | 198mm |
