Behringer P24HUB
| Product # | 248661 |
| Brand | Behringer |
| Series | Behringer PowerPlay |
| Category | Headphone Distribution System |
| Brand Category | Behringer - Distribution Systems |
Power to the Performers
Having a dedicated monitor mix engineer can be expensive and running monitor mixing from FOH can be too demanding-- neither of these is ideal. What if every musician could create their personal monitor mix with a small dedicated mixer on-stage? That's what Personal Monitoring is all about! Save time and energy by giving the control to the musicians! Personal monitors also allow for built-in effects, improving sound; built-in microphones, improving both communication and immersion; All controlled with a simplified user interface.

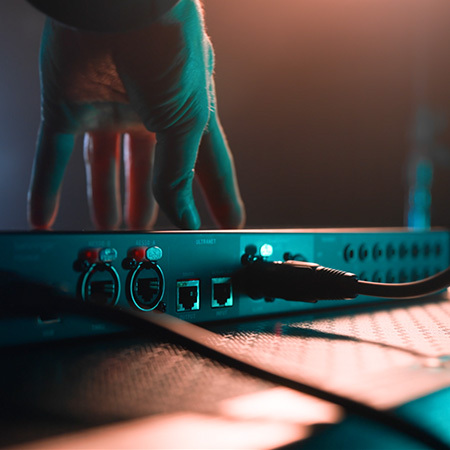

P24 Scales to You
No matter if you're using a single P24 to provide an artist's mix in your studio recording room, or you're deploying a large setup for an orchestra pit with several daisy-chained P24HUBs-- setup and configuration is always a breeze. The P24HUB is the obvious choice for larger setups especially in touring applications. However, several P24 personal mixers can be daisy-chained without a hub. This is ideal when supporting smaller impromptu gigs.
Go Long
For the most robust performance and longest cable runs, using high-quality DMX cabling is recommended. For short connections, standard XLR cables can be used. As there is no capacitance standard for microphone cables, range performance can vary substantially. Investing in high-quality DMX cables helps P24 perform best.
- - Distribution hub with StageConnect bus powering for up to 8 personal monitoring mixers
- - Compatible with Behringer P24 personal mixers, AES50, Ultranet and Analog Connectivity
- - 4 StageConnect front ports for powering 2 daisy-chained mixers each, minimizing on-stage cabling
- - 16 balanced analog outputs on 1/4" TRS, for sending up to 8 personal stereo mixes to wireless IEM transmitters
- - StageConnect 26 x 6-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using a standard XLR cable (DMX cable recommended)
- - StageTalk intercom system for communication between FOH, stage technician and musicians
- - Stable operation range up to 40 m via DMX type XLR cable - standard microphone cable can be used for short connections
- - AES50 In and Thru, with 48 x 48 channels on CAT5E STP cable up to 80 m
- - Ultranet Input with 16 channels on CAT5 STP cable up to 75 m
- - Ultranet In and Outputs for interfacing with various Behringer P16 personal monitoring equipment
- - Integrated sample rate conversion for compatibility with 96 kHz AES50-equipped devices, such as Midas HD consoles
- - Rugged 1U rackmount chassis for durability in portable applications
- - Integrated auto-ranging switch-mode power supply
| Product Dimensions | |
|---|---|
| Depth | 483mm |
| Width | 150mm |
| Height | 44mm |
| Headphone Distribution System attributes | |
|---|---|
| Unit | 1 piece(s) |
| Product Details | |
|---|---|
| Product Number | 248661 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Headphone Distribution System | |
| Date | May 2024 |
| Dimension | |
|---|---|
| Weight | 2.72kg |
| Box Depth | 539mm |
| Box Width | 150mm |
| Box Height | 104mm |
