Novation Peak
| Product # | 195162 |
| Brand | Novation |
| Series | Novation Peak |
| Category | Synthesizer Module |
| Brand Category | Novation - Modules |
Recommended accessories

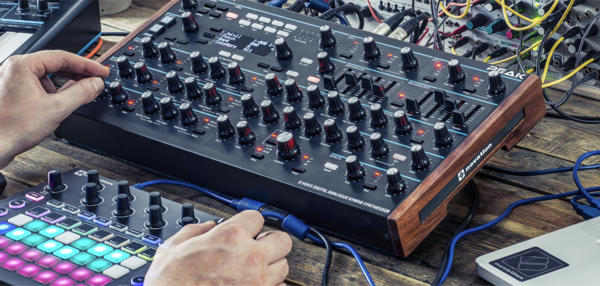

Analogue where it matters? digital where it counts
None other than Chris Huggett, the man behind legendary synthesizers such as Bass Station, Supernova, OSCar and many more was integrated into the development of Peak. The starting point for Peak was Bass Station II, our analog mono synth. In addition to the completely analog sounding NCOs (Numerically Controlled Oscillators), 17 digital wavetables were implemented in Peak to increase flexibility.

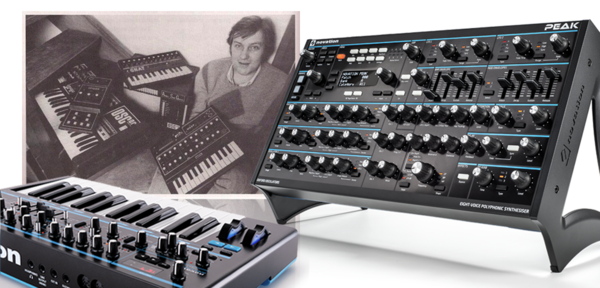

Create and refine new sounds from scratch
Broaden your creative horizons and let yourself be inspired by new things. The modulation system offers you frequently used assignments directly and without any detours. With just a few keystrokes, you can also create more extensive modulations or achieve additional assignment levels.

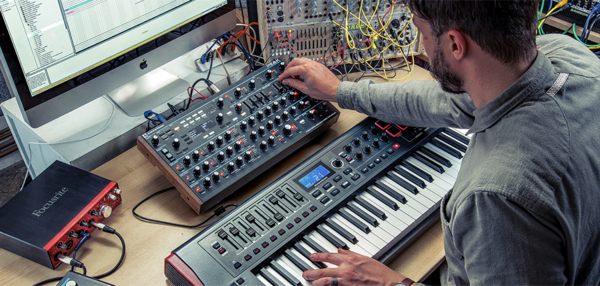

Simply connect to everything
You can connect Peak directly to your PC or Mac via USB and start playing. Thanks to the MIDI inputs and outputs, you can also connect Peak to other MIDI equipment. Or you can integrate Peak into a modular system via the CV modulation input.
Fed up with distortion
In each voice you have three distortions available in the analog signal chain: before the filter, after the filter and globally.
Expressive control
Peak can receive polyphonic aftertouch, which significantly increases your ability to express yourself while playing.
Cross-modulated oscillators
You can also use the three Oxford Oscillators for each voice as a linear FM source, both with the analog sounding NCOs (Numerically Controlled Oscillators) and with the digital wavetables. You also have the option to cross-modulate these in a recursive loop.
Comprehensive modulation system
Peak has a modulation matrix with 16 slots and 16 direct assignments, which are cleverly arranged for intuitive patch design and multi-faceted sound processing. You can access three ADSR envelopes and two LFOs in each voice.
Easily switchable modulation
The two Animate buttons are perfect for live performers because you can instantly change your patches with just one touch.
Factory sounds that blow your mind
The factory sounds sound impressive, thanks to reverb, delay and chorus as well as the arpeggiator.
Easy connection with hardware and software
Connect Peak to your music software and MIDI compatible hardware? in perfect synchronization, of course. You can use Peak together with modular systems via the CV modulation input.
- Ableton Live Lite
- - Innovative New Oxford oscillators with two types of waveform generation: NCO (numerically controlled oscillators) and 17 digital wavetables
- - Pre-filter and post-filter distortion per voice as well as additional global distortion.
- - Polyphonic aftertouch, high quality reverb, delay and chorus effects as well as an integrated arpeggiator
- - Extensive modulation system with 16-slot modulation matrix and 16 direct assignments that can be accessed directly from the top. Three ADSR envelopes and two LFOs per voice as well as Animate buttons.
- - CV modulation input for integration in modular systems
- 8 x 35 mm faders
- 1 volume control
- 2 data encoders
- Rubberized regulator caps with thin metal tops
- 30 function keys (not illuminated)
- 16 function keys (illuminated)
- 2 Animate buttons plus Hold button
- 90 indicator LEDs
- OLED display
- Kensington security port
- Power switch
- Mains socket
- USB B 2.0 / for MIDI communication (no bus power)
- MIDI In / Out / Thru
- 2 x pedal connections (6.3 mm jack, for switches or continuous peaks)
- CV input as 3.5 mm jack
- Output L / R as 6.3 mm jack
- 6.3 mm jack headphone output
- Metal case with wooden sides made of American walnut
| Key attributes | |
|---|---|
| Model | Synthesizer |
| Number of Keys | Buttons |
| Keyboard Type | Waterfall |
| Colour | Black |
| Speakers | No |
| General Information | |
|---|---|
| Manufacturer information | Focusrite Audio Engineering Ltd
Artisan, Hillbottom Road, High Wycombe HP124HJ Buckinghamshire United Kingdom customer.service@focusrite.com |
| Product Warranty | |
|---|---|
| Details | 36 months extended manufacturer warranty |
| Brand warranty | Products purchased on or after January 1, 2018 will benefit from the 36-month warranty. (For Novation products sold until December 31, 2017, the regular warranty applies) |
| Synthesizer Module attributes | |
|---|---|
| Display | No |
| Battery Operated | No |
| Cover | No |
| Pedal | Not Included |
| Built-in Tones | Yes |
| Stand | Not Included |
| MIDI Interface | USB to Host |
| Product Details | |
|---|---|
| Product Number | 195162 |
| Brand | |
| Series | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Synthesizer Module | |
| Date | July 2017 |
| Dimension | |
|---|---|
| Box Depth | 663mm |
| Box Height | 166mm |
| Gross Weight | 6.38kg |
