Behringer CU1A
| Product # | 245803 |
| Brand | Behringer |
| Category | Modular Interface |
| Brand Category | Behringer - Interfaces |
Connect and Control
The CU1A comes with a stereo headphone output that you can control with the dedicated level control. The CU1A also works with any PC or Mac. No setup. No drivers. It also works as a send/return so you can run your modular sounds through your favorite effect plug-in or send beats, samples as well as any other signal into your modular synth for some extremely wild sound experiments!
High-Resolution, Maximum Power.
By integrating the CU1A into your setup, you’ll get high-resolution converters that provide the best audio quality for recording and/or playback. The CU1A is also powered via USB C ensuring that no power is drawn away from your modular synth.

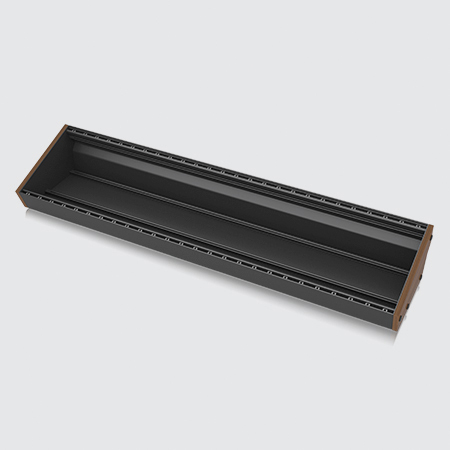

Eurorack Ready
Installing the CU1A is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the CU1A to be mixed with other synth modules for a truly unique set up.
- - Audio interface connects your modular setup with your computer for recording and playback
- - High-resolution 48 kHz converters for high-end audio quality
- - Works with your PC or Mac computer—no setup or drivers required
- - Stereo headphones output with dedicated Level control lets you monitor both input and output
- - Powered via USB Type C - no power absorbed from your modular system
- - Eurorack specs: 6 HP, 0 mA +12 V, 0 mA -12 V
- Type
Class compliant USB Type C
- Supported Operating Systems
Windows 7 and higher Mac OS 10.10 and higher
- INPUTS
- Analog line leve
- 2 x 3.5 mm TS jack
Input level -10 dB or + 4 dB switchable
- USB
USB C
- OUTPUTS
- Analog line level
- 2 x 3.5 mm TS jack
Output level -10 dB or +4 dB switchable
- Phones
3.5 mm stereo TRS jack
- USB
USB C
- CONTROLS
- Control
Headphone Volume
- Switches
- Input level micro
- Output level micro
- Headphone monitor on/of
| Product Dimensions | |
|---|---|
| Depth | 129mm |
| Width | 30mm |
| Height | 35mm |
| Product Details | |
|---|---|
| Product Number | 245803 |
| Brand | |
| Category | |
| Brand Category | |
| Relevancy rank in Category Modular Interface | |
| Date | September 2024 |
| Product Quantity | |
|---|---|
| Unit | 1 piece(s) |
| Dimension | |
|---|---|
| Weight | 0.06kg |
| Box Depth | 179mm |
| Box Width | 30mm |
| Box Height | 59mm |
| Gross Weight | 0.09kg |
